AR Optical Coatings, Broadband & DLC coatings



How Anti-Reflective Coatings Work

Ever wondered why some eyeglasses have a faint bluish tint while others appear nearly invisible? The answer lies in a clever technology called anti-reflective (AR) coating.

AR coatings are thin films applied to surfaces like lenses or glass barriers to minimize light reflection and maximize light transmission. This improves the efficiency of optical instruments and enhances the clarity of vision.


The Science Behind AR


 Light behaves differently when it transitions between materials with varying refractive indices, which determine how much it bends. When encountering a surface, part of the light reflects back while the rest transmits through. Anti-reflective (AR) coatings take advantage of destructive interference, a phenomenon where a thin film with a specific refractive index and thickness is applied to create a counter-reflection that cancels out unwanted reflections from the original surface. This enhances light transmission, resulting in a clearer image.


The extent of reflection and transmission depends on the refractive indices of the materials involved, and Fresnel's equations help calculate these values. For instance, when light travels through air and reaches a crown glass lens, it encounters a change in refractive index—from approximately 1 for air to about 1.52 for crown glass. Fresnel’s equations show that roughly 4% of the light is reflected at the air-glass interface. Ideally, an AR coating would have a refractive index precisely between air and crown glass, around 1.23, but no such perfect material exists.


AR coatings can be classified into two main types. Single-layer coatings use a single thin film material, such as Magnesium Fluoride (MgF₂), which is particularly effective for visible light applications. While these coatings improve clarity in spectacles and camera lenses, their ability to minimise reflection across a broad spectrum is limited. Multi-layer coatings, on the other hand, utilise several layers of materials with different refractive indices, allowing for more precise control over reflected light. By optimising the layering process, multi-layer coatings can significantly enhance performance, reducing reflections across a wider range of wavelengths and surpassing the effectiveness of single-layer alternatives.


Beyond the Basics: Limitations and Advancements


AR coatings have limitations. For instance, their effectiveness depends on the angle of light incidence. Additionally, achieving perfect anti-reflection across a wide range of wavelengths is challenging.

However, advancements in manufacturing techniques are leading to the development of even more sophisticated AR coatings. These include nanostructured coatings that manipulate light through physical properties rather than relying solely on material properties.

Overall, AR coatings are a fascinating technology that enhances our ability to see the world around us with greater clarity. They are a testament to the power of science and engineering in creating solutions that improve our everyday lives.

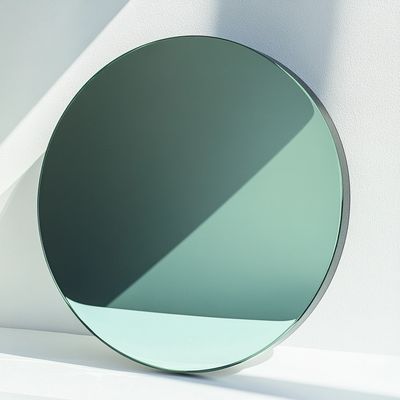

IR coated Silicon lens

Broadband Optical Coating



BBAR coatings are a specialised type of anti-reflection (AR) coating designed to improve light transmission across a broader range of wavelengths. Unlike conventional AR coatings, which are optimised for a specific wavelength, BBAR coatings provide greater versatility for applications involving light sources and lasers that emit across multiple wavelengths or generate harmonic frequencies.


These coatings significantly reduce reflections, enhancing light transmission over a wider spectral range. Their adaptability makes them ideal for various applications, including broadband light sources, multi-harmonic lasers, and optical components requiring efficient transmission across a spectrum. BBAR coatings are commonly applied to lenses, windows, and other transmissive optical components where a single narrow-band AR coating would be insufficient.


BBAR coatings are particularly valuable in laser and nonlinear crystal applications, where minimising reflections at the interface between laser and nonlinear crystals is crucial. Uncontrolled reflections can negatively impact laser performance and nonlinear optical processes.

While BBAR coatings offer excellent performance across a wide range of wavelengths, they may not achieve the same ultra-low reflectivity levels as coatings designed for a single wavelength. However, they are especially useful in laser systems with multiple-harmonic generation, where reducing reflections at each generated wavelength is essential.


In summary, BBAR coatings play a vital role in optimising optical system performance, ensuring efficient light transmission across a broad spectrum. Their versatility and effectiveness make them indispensable for applications ranging from advanced laser systems to precision imaging optics.

Broadband coated windows

Engineering Solutions for a Better Tomorrow

DLC Coatings

Diamond-Like Carbon (DLC) coatings are a class of nanocomposite materials that mimic the properties of natural diamond, offering exceptional hardness, wear resistance, and low friction. Their structure and performance are determined by the ratio of SP3 (diamond) and SP2 (carbon) bonds, as well as the incorporation of elements such as hydrogen, silicon, or metals.

These coatings are deposited using techniques such as PVD arc, PVD sputtering, and PACVD processes, which can produce hydrogenated and non-hydrogenated variants with distinct properties. Environmentally friendly and highly beneficial, DLC coatings help to reduce friction, wear, fretting, galling, and corrosion while also modifying electrical conductivity and wettability.


DLC coatings provide outstanding durability and resistance to abrasion, significantly extending the lifespan of components. Their low-friction properties minimise wear and enhance performance, while their chemical inertness ensures resistance to corrosion and degradation. They are also biocompatible, making them suitable for medical applications, and their smooth surface finish improves optical performance by reducing light scattering.

Different types of DLC coatings serve specific purposes. Hydrogenated amorphous carbon (a-C:H) offers a balance of hardness and low friction, while tetrahedral amorphous carbon (ta-C) provides the highest level of hardness and durability, closely resembling natural diamond.


In optical applications, DLC coatings enhance durability by improving abrasion resistance and extending component lifespan. Their low reflectivity reduces unwanted reflections and ghost images, optimising optical performance. They also maintain stability in harsh environments, offering strong corrosion resistance, and their transparency across a wide wavelength range makes them especially valuable in infrared optical systems.

These coatings play a crucial role in various industries. Military optical equipment benefits from their durability in demanding conditions, while precision medical instruments take advantage of their biocompatibility and wear resistance. Industrial laser optics see improved component lifespan and reduced maintenance costs, while space engineering and ocean exploration benefit from their resilience in extreme environments.


DLC coatings have become indispensable in optical systems where durability, high performance, and long-term reliability are essential. Their ability to enhance optical performance while providing exceptional protection makes them a vital asset across multiple applications.

DLC coated germanium lens
